Key Design Features
• Classic Five Spoke Muscle Design
• Deep Step Lip Profile
• Brake Clearance Architecture
• High Pressure Cast Construction
• Fitments for Mustang, GM, and Mopar Platforms

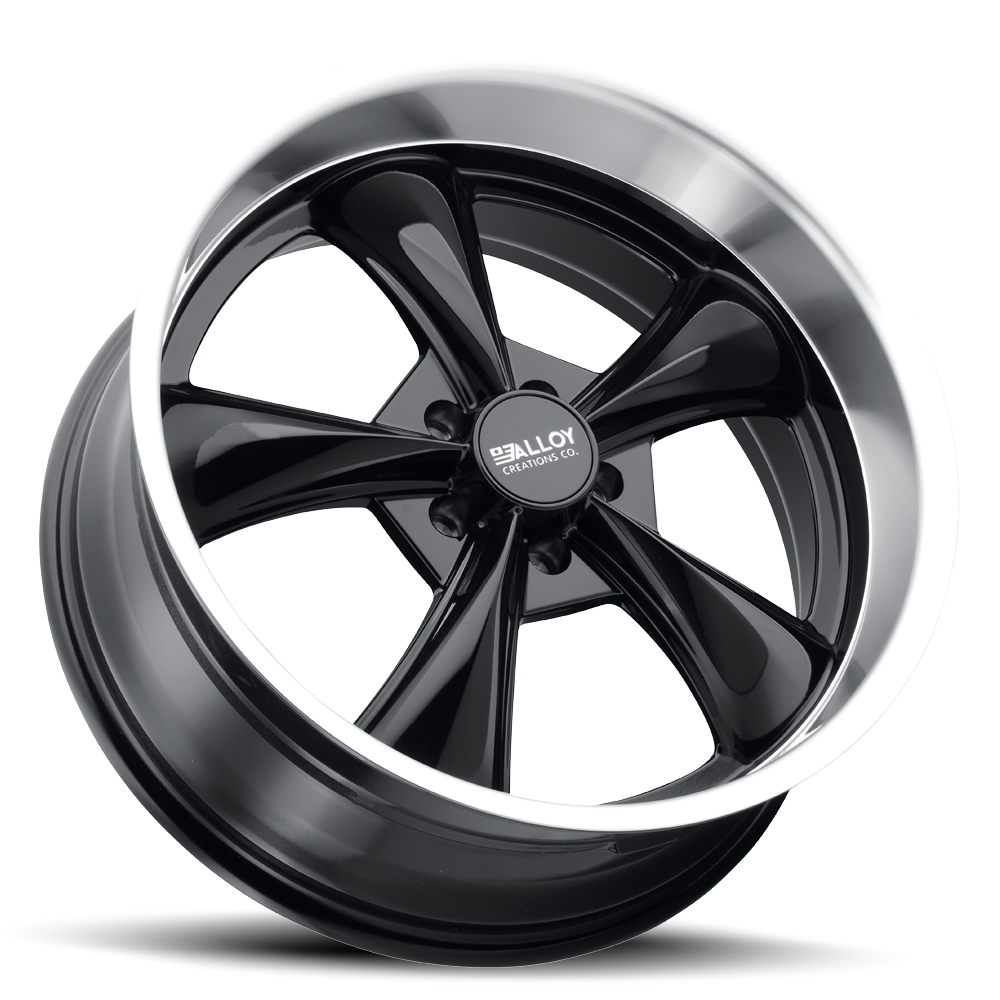

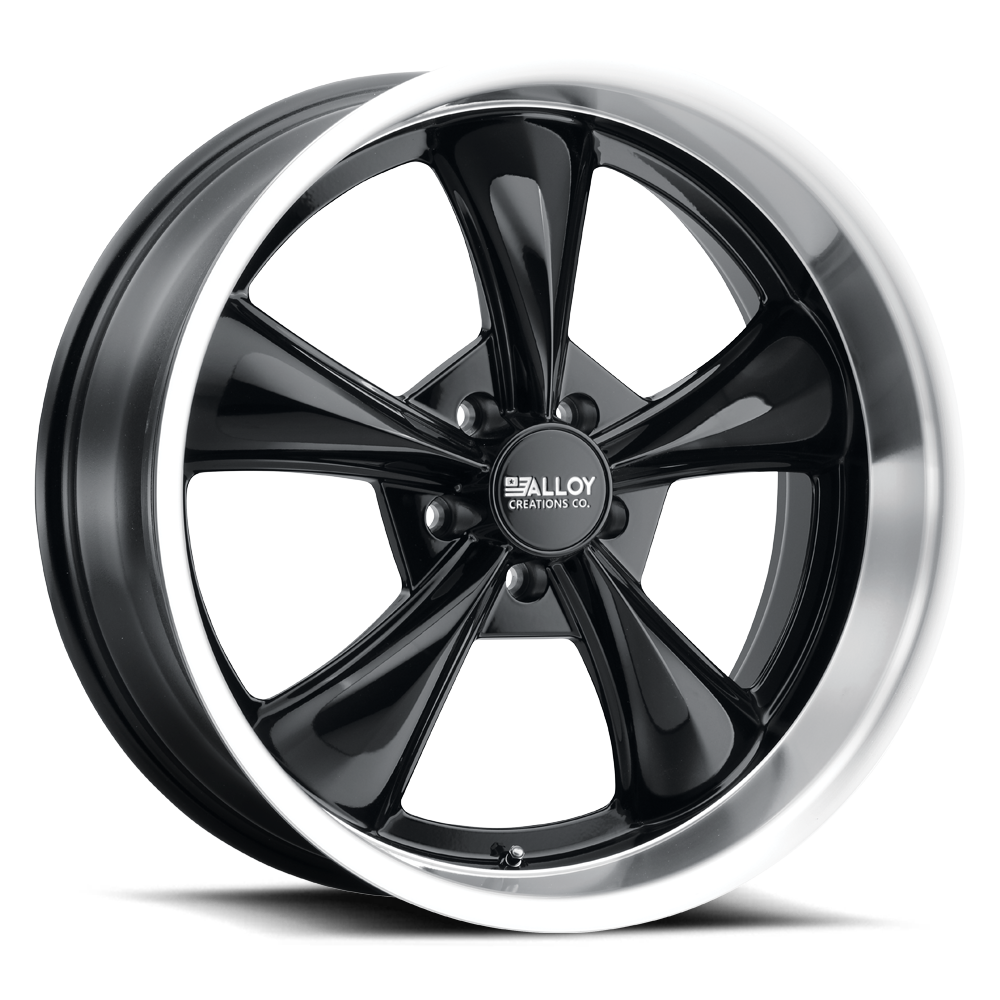

AC505 Gloss Black Machined Lip
The AC505 reimagines one of the most iconic wheel styles in American performance history. Inspired by the bold five-spoke wheels that defined the golden era of muscle cars, it delivers timeless styling with proportions suited for modern restomod builds.
Its sculpted five-spoke design flows smoothly from the hub to the outer rim, providing strong brake clearance and a deep step lip that enhances the aggressive stance muscle enthusiasts expect.
Available Sizes
17×7 | 17×8 | 18×8 | 18×9.5 | 20×8.5 | 20×10
Description
| Style | PartNumber | Diameter | Width | Finish | PCD1 | PCD2 | BoltPattern | Offset | Centerbore | Backspace | Load | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC505 | 505C-1770F0 | 17 | 7 | CHROME | 5X114.3 | 5X114.3 | 0 | 83.82 | 4 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1770I0 | 17 | 7 | CHROME | 5X120.65 | 5X120.65 | 0 | 83.82 | 4 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1770J0 | 17 | 7 | CHROME | 5X127 | 5X127 | 0 | 83.82 | 4 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1780F0 | 17 | 8 | CHROME | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1780I0 | 17 | 8 | CHROME | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1780J0 | 17 | 8 | CHROME | 5X127 | 5X127 | 0 | 83.82 | 4.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1880F0 | 18 | 8 | CHROME | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1880I0 | 18 | 8 | CHROME | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1880J0 | 18 | 8 | CHROME | 5X127 | 5X127 | 0 | 83.82 | 4.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1895F6 | 18 | 9.5 | CHROME | 5X114.3 | 5X114.3 | 6 | 83.82 | 5.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1895I6 | 18 | 9.5 | CHROME | 5X120.65 | 5X120.65 | 6 | 83.82 | 5.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-1895J6 | 18 | 9.5 | CHROME | 5X127 | 5X127 | 6 | 83.82 | 5.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-2010F0 | 20 | 10 | CHROME | 5X114.3 | 5X114.3 | 0 | 83.82 | 5.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-2010I0 | 20 | 10 | CHROME | 5X120.65 | 5X120.65 | 0 | 83.82 | 5.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-2010J0 | 20 | 10 | CHROME | 5X127 | 5X127 | 0 | 83.82 | 5.5 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-2085F0 | 20 | 8.5 | CHROME | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.75 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-2085I0 | 20 | 8.5 | CHROME | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.75 | 1725 | ||||||||||||||||||||||||||||||
| AC505 | 505C-2085J0 | 20 | 8.5 | CHROME | 5X127 | 5X127 | 0 | 83.82 | 4.75 | 1725 |
| Style | PartNumber | Diameter | Width | Finish | PCD1 | PCD2 | BoltPattern | Offset | Centerbore | Backspace | Load |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AC505 | 505LA-1770F0 | 17 | 7 | GREY/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4 | 1725 | |
| AC505 | 505LA-1770I0 | 17 | 7 | GREY/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4 | 1725 | |
| AC505 | 505LA-1770J0 | 17 | 7 | GREY/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4 | 1725 | |
| AC505 | 505LA-1780F0 | 17 | 8 | GREY/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.5 | 1725 | |
| AC505 | 505LA-1780I0 | 17 | 8 | GREY/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.5 | 1725 | |
| AC505 | 505LA-1780J0 | 17 | 8 | GREY/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4.5 | 1725 | |
| AC505 | 505LA-1880F0 | 18 | 8 | GREY/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.5 | 1725 | |
| AC505 | 505LA-1880I0 | 18 | 8 | GREY/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.5 | 1725 | |
| AC505 | 505LA-1880J0 | 18 | 8 | GREY/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4.5 | 1725 | |
| AC505 | 505LA-1895F6 | 18 | 9.5 | GREY/MACHINED LIP | 5X114.3 | 5X114.3 | 6 | 83.82 | 5.5 | 1725 | |
| AC505 | 505LA-1895I6 | 18 | 9.5 | GREY/MACHINED LIP | 5X120.65 | 5X120.65 | 6 | 83.82 | 5.5 | 1725 | |
| AC505 | 505LA-1895J6 | 18 | 9.5 | GREY/MACHINED LIP | 5X127 | 5X127 | 6 | 83.82 | 5.5 | 1725 | |
| AC505 | 505LA-2010F0 | 20 | 10 | GREY/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 5.5 | 1725 | |
| AC505 | 505LA-2010I0 | 20 | 10 | GREY/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 5.5 | 1725 | |
| AC505 | 505LA-2010J0 | 20 | 10 | GREY/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 5.5 | 1725 | |
| AC505 | 505LA-2085F0 | 20 | 8.5 | GREY/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.75 | 1725 | |
| AC505 | 505LA-2085I0 | 20 | 8.5 | GREY/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.75 | 1725 | |
| AC505 | 505LA-2085J0 | 20 | 8.5 | GREY/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4.75 | 1725 |
| Style | PartNumber | Diameter | Width | Finish | PCD1 | PCD2 | BoltPattern | Offset | Centerbore | Backspace | Load | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AC505 | 505AA-1770F0 | 17 | 7 | GLOSS BLACK/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4 | 1725 | |||||||||||||||||
| AC505 | 505AA-1770I0 | 17 | 7 | GLOSS BLACK/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4 | 1725 | |||||||||||||||||
| AC505 | 505AA-1770J0 | 17 | 7 | GLOSS BLACK/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4 | 1725 | |||||||||||||||||
| AC505 | 505AA-1780F0 | 17 | 8 | GLOSS BLACK/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1780I0 | 17 | 8 | GLOSS BLACK/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1780J0 | 17 | 8 | GLOSS BLACK/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1880F0 | 18 | 8 | GLOSS BLACK/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1880I0 | 18 | 8 | GLOSS BLACK/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1880J0 | 18 | 8 | GLOSS BLACK/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1895F6 | 18 | 9.5 | GLOSS BLACK/MACHINED LIP | 5X114.3 | 5X114.3 | 6 | 83.82 | 5.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1895I6 | 18 | 9.5 | GLOSS BLACK/MACHINED LIP | 5X120.65 | 5X120.65 | 6 | 83.82 | 5.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-1895J6 | 18 | 9.5 | GLOSS BLACK/MACHINED LIP | 5X127 | 5X127 | 6 | 83.82 | 5.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-2010F0 | 20 | 10 | GLOSS BLACK/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 5.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-2010I0 | 20 | 10 | GLOSS BLACK/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 5.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-2010J0 | 20 | 10 | GLOSS BLACK/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 5.5 | 1725 | |||||||||||||||||
| AC505 | 505AA-2085F0 | 20 | 8.5 | GLOSS BLACK/MACHINED LIP | 5X114.3 | 5X114.3 | 0 | 83.82 | 4.75 | 1725 | |||||||||||||||||
| AC505 | 505AA-2085I0 | 20 | 8.5 | GLOSS BLACK/MACHINED LIP | 5X120.65 | 5X120.65 | 0 | 83.82 | 4.75 | 1725 | |||||||||||||||||
| AC505 | 505AA-2085J0 | 20 | 8.5 | GLOSS BLACK/MACHINED LIP | 5X127 | 5X127 | 0 | 83.82 | 4.75 | 1725 |
